Our products

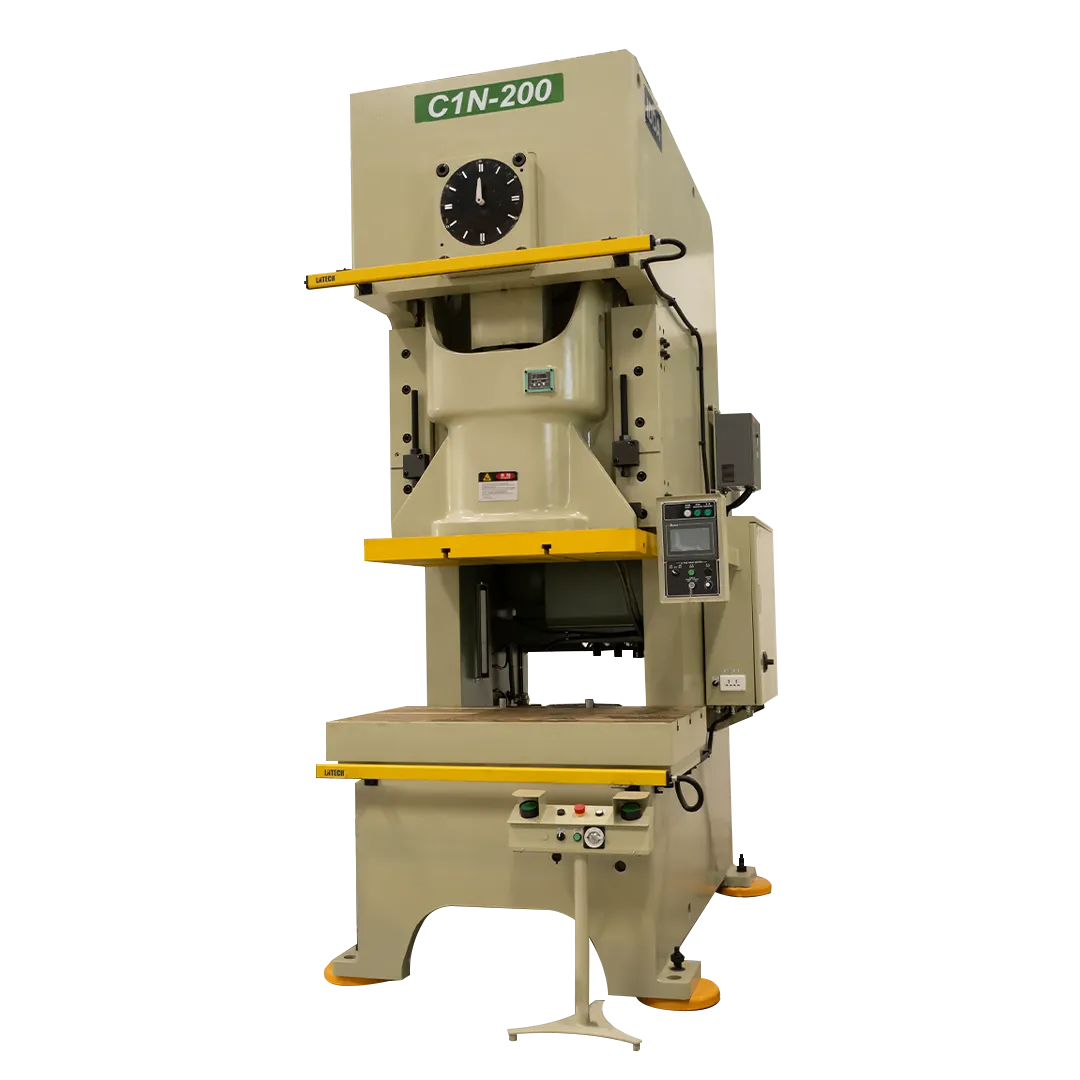

C1N-200
Press Machine
Sub Category: C1N-200
Product features
Specifications
| Model | C1N-200 |
| Capacity | 200 T |
| Rated Tonnage Point | 6 mm |
| Stroke Per Minute (Variable) | 20 ~ 50 s.p.m. |
| Stroke Per Minute (Fixed) | 35 s.p.m. |
| Stroke | 200 mm |
| Die Height | 460 mm |
| Slide Adjustment | 110 mm |
| Slide Area | 850 × 630 × 90 mm |
| Bolster Area | 1400 × 820 × 160 mm |
| Shank Hole | ø 65 mm |
| Main Motor | 18.5 kw × 4P |
| Slide Adjust Device | Electric Driving |
| Air Pressure | 6 kg/cm² |
| Presses Precision | GB (JIS) 1 Class |
| Presses Dimension | 2615 × 1690 × 4075 mm |
| Presses Weight | 23 T |
