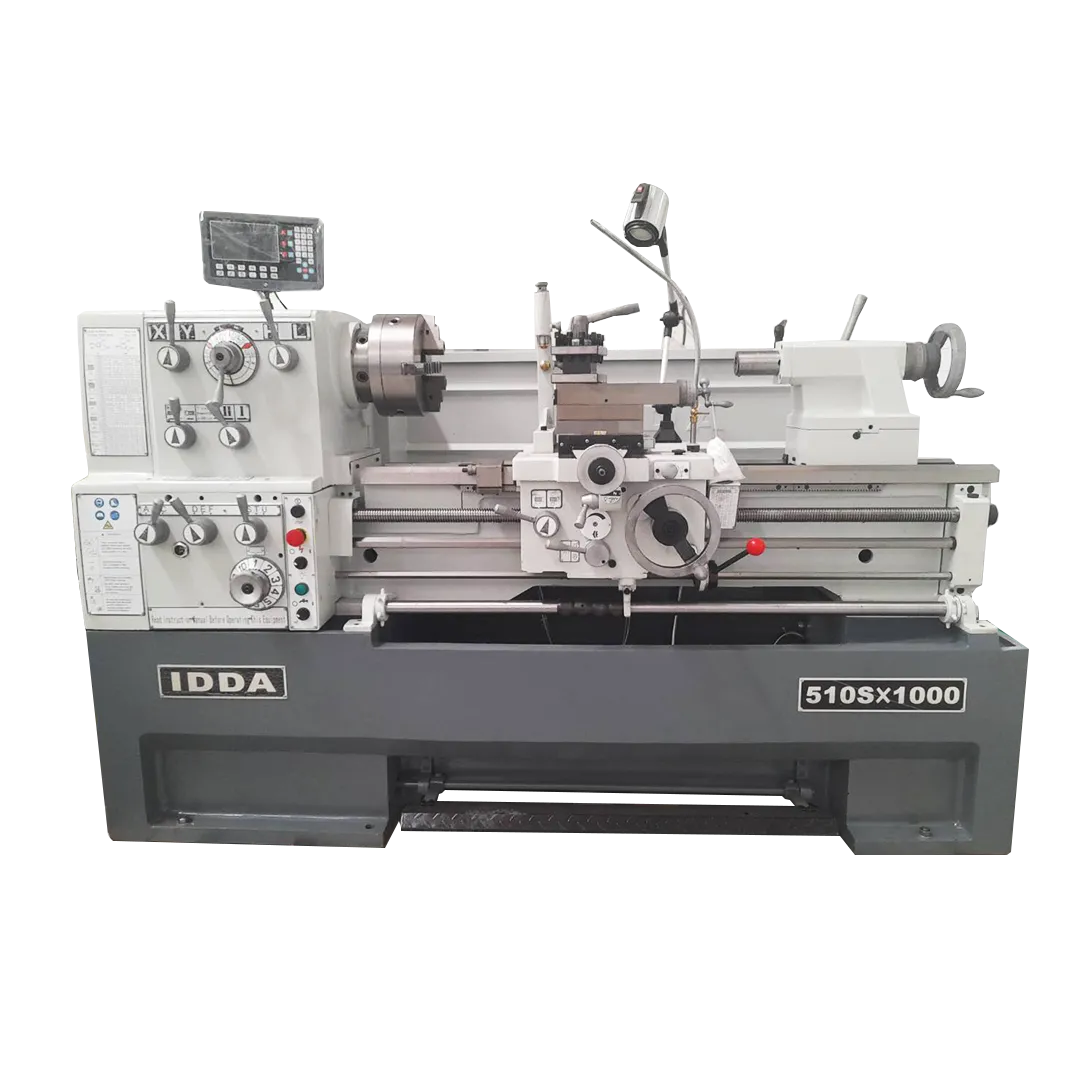

510Sx1000
Lathe
Sub Category: 510S×1000
Product features
Specifications
| Model | 510Sx1000 |
| Swing over bed | Ø 510 mm |
| Swing over cross slide | Ø 320 mm |
| Swing in gap diameter | 740×165 mm |
| Height of Center | 255 mm |
| Distance between center | 1000 mm |
| Windth of bed | 300 mm |
| Cutting Tool Max. Section | 25×25 mm/s |
| Total Travel of Cross Slide | 285 mm/s |
| Total Travel of Top Slide | 128 mm/s |
| Spindle bore | Ø 58 mm |
| Spindle nose | ≤D1-6 |
| Spindle Morse Taper in Nose, in Sleeve | ≤M.T.No.6 |
| Spindle Speeds Range | ≤25 – 2000 r.p.m |
| Lead screw Diameter & Thread | Ø 35 mm × 4T.P.I. or Pitch 6 mm |
| Threads Imperial Pitches | 2-112 T.P.I. (60nos) |
| Threads Metric Pitches | 0.1 – 14 mm (41nos) |
| Diametrical Pitches | 4 – 112D.P. (50nos) |
| Module Pitches | 0.1 – 7M.P. (34nos) |
| Longitudinal Feeds Imperial | 0.0011″ – 0.0633″/Rev (42nos) |
| Longitudinal Feeds Metric | 0.031 – 1.7mm/Rev (42nos) |
| Cross-Feeds Imperial | 0.00033″ – 0.01837″ (42nos) |
| Cross Feeds Metric | 0.014 – 0.784mm (42nos) |
| Total Travel of Tailstock Quill | 130 mm |
| Tailstock Quill Diameter | Ø 60 mm |
| Taper In Tailstock Quill | M.T.No.4 |
| Spindle Drive Motor | 5.5 kW (7.5HP) 3PH |
| Coolant Pump Motor | 0.1 kW (1/8HP) |
| Machine Space Required (L×W×H) | 220 × 108 × 140 cm |
| Packing Case Dimensions (L×W×H) | 225 × 112 × 163 cm |
| Net Weight | 1705 kg |
| Gross Weight | 1975 kg |
