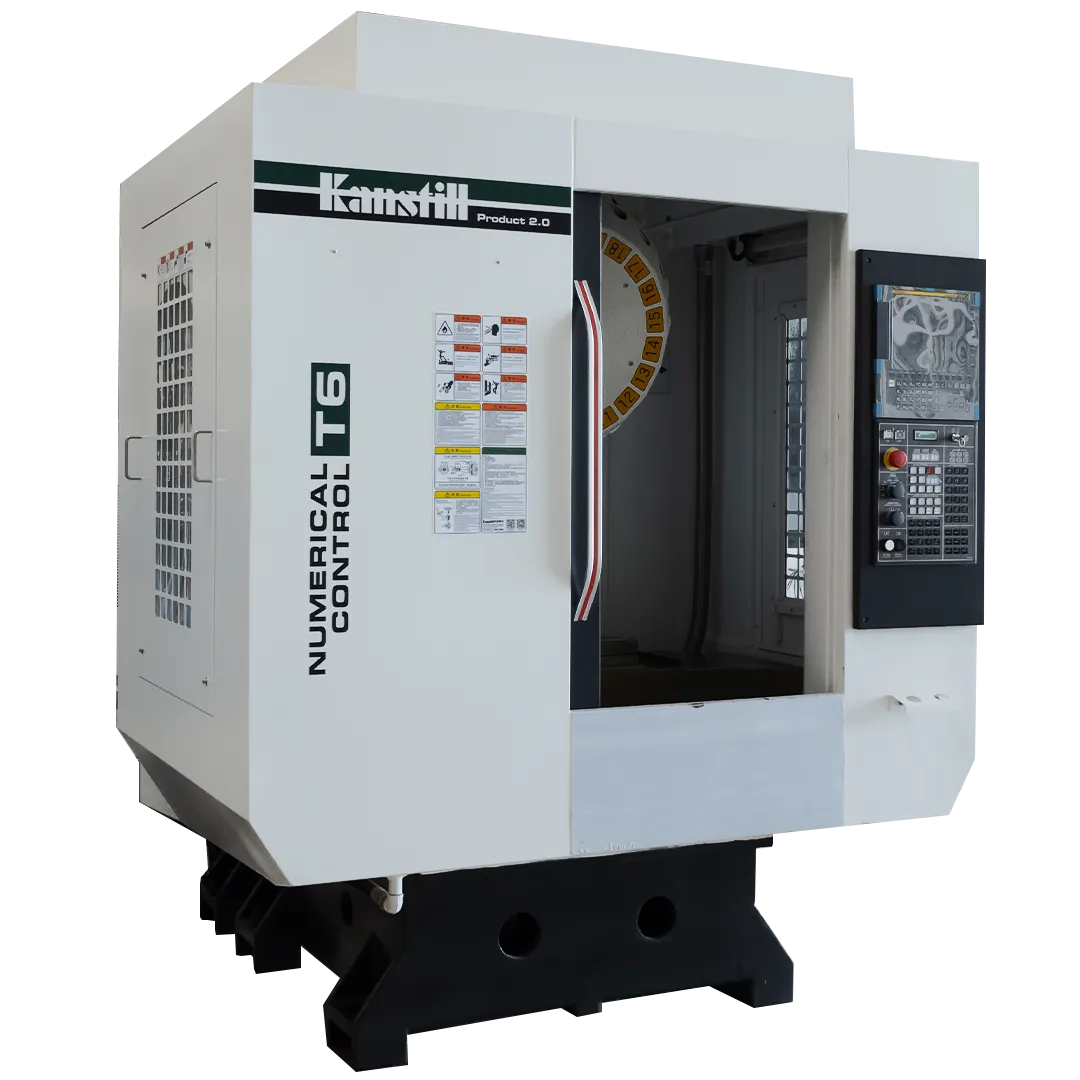

KANSTILL T6
CNC Machining Center
Sub Category: KANSTILL T6
คุณลักษณะสินค้า
Specifications
| Model | T6 |
| Stroke X/Y/Z | 600 / 400 / 330 mm |
| Distance From Spindle End Face To Table | 150 – 480 mm |
| Distance From Spindle Center To Column Guide Rail Surface | 464 mm |
| Table Size | 700 × 420 mm |
| Max Loading | 200 kg |
| T-slots (N × width × space) | 3 × 14 × 125 |
| Taper | BT30 |
| Spindle Speed | 20000 rpm |
| Spigot / Pull Stud | 45° |
| Spindle Motor | 3.7 – 5.5 kw |
| X/Y Axis Fast Movement Speed | 48 m/min |
| Z Axis Fast Movement Speed | 48 m/min |
| 3-Axis Cutting Feed Speed | 1 – 12000 mm/min |
| Positioning Accuracy | ±0.003 / 300 mm |
| Repetitive Positioning Accuracy | ±0.0025 / 300 mm |
| Number of Tools | 21 Tools |
| Tools Changing Form | Turret type |
| Tools Selection Form | Clamping arm type |
| Max Tool Length | 250 mm |
| Max Tool Weight | 3 kg |
| Max Tool Dia. (Full/Adjacent) | Φ60 / Φ80 mm |
| Automatic Tool Change Time | 1.3 s (Adjacent) |
| Pressure | 0.65 MPa |
| Cooling Power | 1000 W |
| Lift | 30 m |
| Flow | 4 m³/h |
| Coolant Capacity | 230 L |
| Machine Weight | 3000 kg |
| Machine Size | 1750 × 2363 × 2216 mm |
| Voltage | AC380V 3PH, 50Hz |
| Total Power | 18 kw |
